Bucket teeth are critical wear components installed at the front edge of buckets on excavators, loaders, and other earthmoving machinery. They are directly responsible for cutting, breaking, and excavating materials. Their performance has a direct impact on operating efficiency, fuel consumption, and equipment service life. Bucket teeth are widely used in earth excavation, mining operations, infrastructure construction, and river dredging applications.

1. Core Types and Structure

By structural design, bucket teeth are divided into one-piece and two-piece (replaceable) types. One-piece bucket teeth integrate the tooth tip and adapter into a single structure, offering high structural strength and excellent impact resistance. They are suitable for heavy-duty and high-impact applications; however, the entire tooth must be replaced after wear, resulting in higher operating costs.

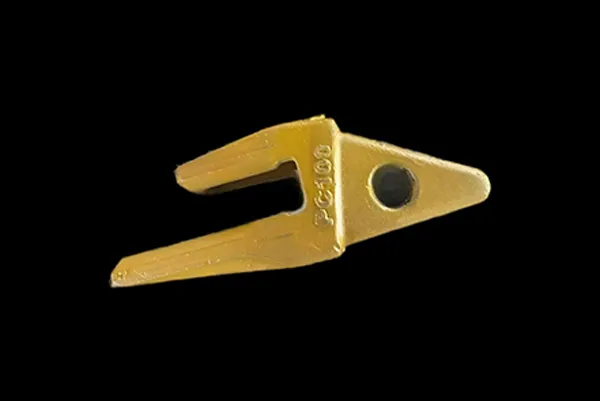

Two-piece bucket teeth consist of a tooth adapter and a replaceable tooth tip connected by horizontal or vertical pins. Only the worn tooth tip needs replacement, providing better economic efficiency. This design is currently the mainstream configuration and is suitable for most standard working conditions.

By tooth profile and function, bucket teeth can be classified into standard earthmoving teeth, pointed rock teeth, flat Wear-resistant teeth, and conical frozen-soil teeth. Each tooth type is optimized for penetration capability, wear resistance, and cutting resistance to match different operating conditions.

2. Mainstream Materials and Performance

Bucket teeth are primarily manufactured from wear-resistant alloy steel. Through optimized alloy composition and heat treatment, a balance between hardness, toughness, and wear resistance is achieved. Common materials and their performance parameters are shown below:

Note: Service life values are reference figures under typical working conditions and may vary depending on material hardness and operating practices.

3. Key Manufacturing Processes and Performance Requirements

The main manufacturing processes include forging or precision casting, quenching and tempering heat treatment, and surface strengthening. Forged Bucket Teeth feature dense grain structure and superior impact resistance compared to cast components, making them suitable for heavy-duty applications. Cast Bucket Teeth offer high dimensional accuracy and controlled cost, making them suitable for general-purpose use.

Heat treatment mainly involves quenching and tempering to ensure sufficient core toughness and surface hardness, avoiding failure caused by excessive brittleness or insufficient wear resistance. Surface strengthening processes commonly include tungsten carbide hardfacing and carburizing with quenching, which significantly improve surface wear resistance and extend service life.

Key performance requirements include impact strength ≥ 80 J/cm², no surface defects such as pores or cracks, tooth tip dimensional tolerance within ±0.5 mm, and secure, precise fit with the adapter to ensure stable installation.

4. Selection and Maintenance Guidelines

Bucket tooth selection should be matched to operating conditions. For light-duty earthwork, carbon steel or low-alloy flat teeth are recommended. For hard rock and mining applications, high-alloy steel or hardfaced pointed teeth are preferred. For frozen soil or clay, conical penetration teeth offer better performance.

Regular inspection of wear is essential. Tooth tips should be replaced when wear exceeds one-third of the original length to prevent increased digging resistance and fuel consumption. For two-piece bucket teeth, priority should be given to replacing the tooth tip, while one-piece bucket teeth are recommended to be replaced in pairs to maintain balanced bucket loading. During installation, ensure pins are securely fastened to prevent detachment during operation and to extend overall service life.
